GEARLESS TRACTION TECHNOLOGY

Gearless Passenger Lift

High-speed, energy-efficient elevators for modern high-rise commercial and residential towers.

Get Free Quote
ADVANCED SYNCHRONOUS MOTOR TECHNOLOGY

Gearless Traction Passenger Lifts

Next-generation permanent magnet synchronous motor (PMSM) technology for high-rise buildings. Ultra-high speed, exceptional energy efficiency, and minimal maintenance requirements.

Gearless Traction Passenger Lift

Gearless Traction System

PMSM motor technology for ultra-high speed and maximum energy efficiency across high-rise buildings.

KEY SPECIFICATIONS

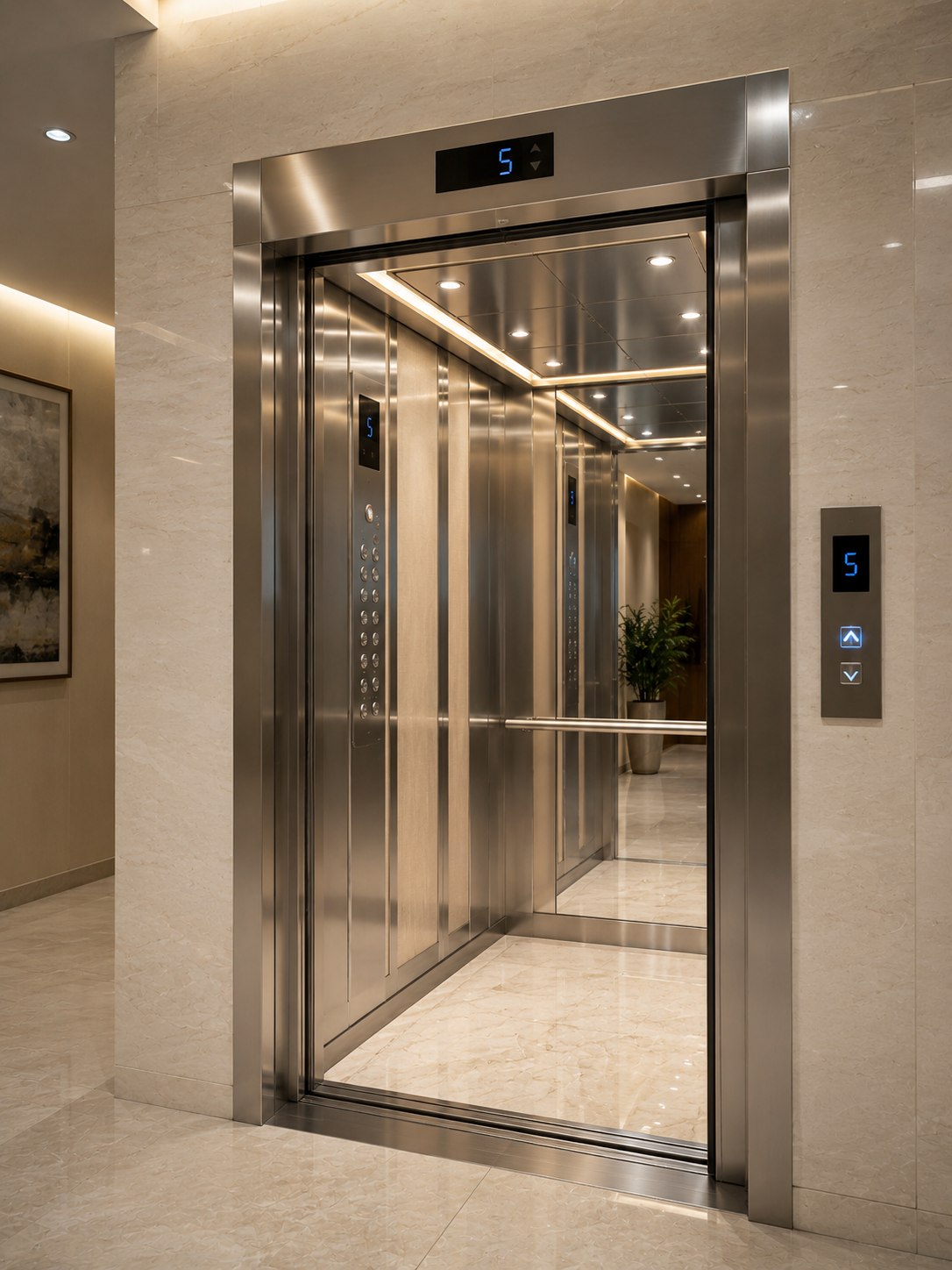

Gearless Traction Passenger Lift

Ultra-high speed PMSM motor system for premium passenger transport. Perfect for corporate towers and luxury residences.

Lift TypeGearless MRL Traction
MotorPMSM Synchronous
Capacity1000 – 2000 KG
SpeedUp to 4.0 m/s
FloorsUp to 32 Stops
Cabin Size1500 × 1200 mm
Energy Saving60–75% vs Geared
Machine RoomMRL (Not Required)
Installation20 – 30 Days
Starting Price₹18 Lakhs+
Get Full Brochure
WHY CHOOSE GEARLESS TRACTION

Premium Technology

Speed & Efficiency

  • Ultra-high speed up to 4.0 m/s
  • 60–75% energy savings vs geared
  • PMSM motor technology
  • Rapid passenger throughput
  • Regenerative drive system

High-Rise Capability

  • Supports up to 32 stops
  • Machine room-less (MRL)
  • Minimal maintenance needed
  • Smart IoT integration ready
  • Destination control option

Safety Systems

  • ARD (Auto Rescue Device)
  • Door Safety Ray / Curtain
  • Seismic Sensor
  • Overload & Speed Governor
  • CCTV & Intercom

Cabin Finishes

  • Mirror / Hairline SS Walls
  • Granite / Marble Flooring
  • False Ceiling with LED
  • Handrail (SS / Glass)
  • Custom Branding Possible
BEFORE INSTALLATION

Site Requirements

SPACE

Shaft Dimensions

Minimum shaft size of 1600×1800 mm for standard 8-person cabin. MRL models save additional machine room space — no separate room required.

POWER

Three-Phase Supply

Three-phase 415V, 50Hz supply required. Regenerative drive feeds surplus power back to building grid — reducing energy bills significantly.

CIVIL

Pit & Overhead

Pit depth of 1200–1500 mm and overhead clearance of 4200–4500 mm required. RCC shaft construction recommended for high-rise installations.

CAPACITY

Persons per Trip

Models carry 13 to 20 persons per trip (1000 KG to 2000 KG). We calculate capacity based on your building's peak-hour footfall requirements.

FLOORS

Floor Coverage

Serves up to 32 floors with speed options from 1.5 m/s to 4.0 m/s. Destination control system available for 15+ floor high-rise buildings.

COMPLIANCE

Standards Met

Fully compliant with IS 14665, NBC 2016, EN 81-20/50 and BIS standards. We handle all statutory approvals and inspection certifications.

INVESTMENT OPTIONS

Gearless Traction Packages

Premium configurations with installation, testing and 1-year comprehensive AMC included. GST extra.

Mid-Rise Building

8 Stops, 1250 KG

₹18L – 22L
  • Installation & testing
  • 1-year AMC included
  • Premium cabin finishes
  • Safety certification
Get Quote

Corporate Tower

16 Stops, 1600 KG

₹24L – 30L
  • Installation & testing
  • 1-year AMC included
  • IoT-ready system
  • ARD & remote monitoring
Get Quote

Premium High-Rise

24+ Stops, 2000 KG

₹32L – 40L+
  • Installation & testing
  • 1-year AMC included
  • Custom MRL design
  • Destination control system
Get Quote
HAVE QUESTIONS?

Frequently Asked Questions

Gearless traction lifts use PMSM motors without a gearbox — resulting in 60–75% lower energy consumption, quieter operation, higher speeds (up to 4 m/s), and significantly less maintenance. They're ideal for high-rise buildings with heavy passenger traffic.

MRL lifts house the drive motor inside the shaft itself — eliminating the need for a separate machine room. This saves 8–12 sq m of building space and is now the preferred option for all new high-rise commercial construction.

Our gearless traction lifts serve up to 32 floors at speeds up to 4.0 m/s. For buildings above 15 floors, we recommend adding destination control systems for maximum efficiency and reduced waiting times.

Our lifts are equipped with ARD (Automatic Rescue Device) which automatically moves the cabin to the nearest floor and opens doors during a power cut — ensuring passengers are never trapped inside the elevator.

Yes. The energy regeneration drive and PMSM motor technology qualify these lifts for IGBC and LEED green building rating points. We provide all required energy consumption certificates for your green building submission.
