GEARED TRACTION ELEVATORS

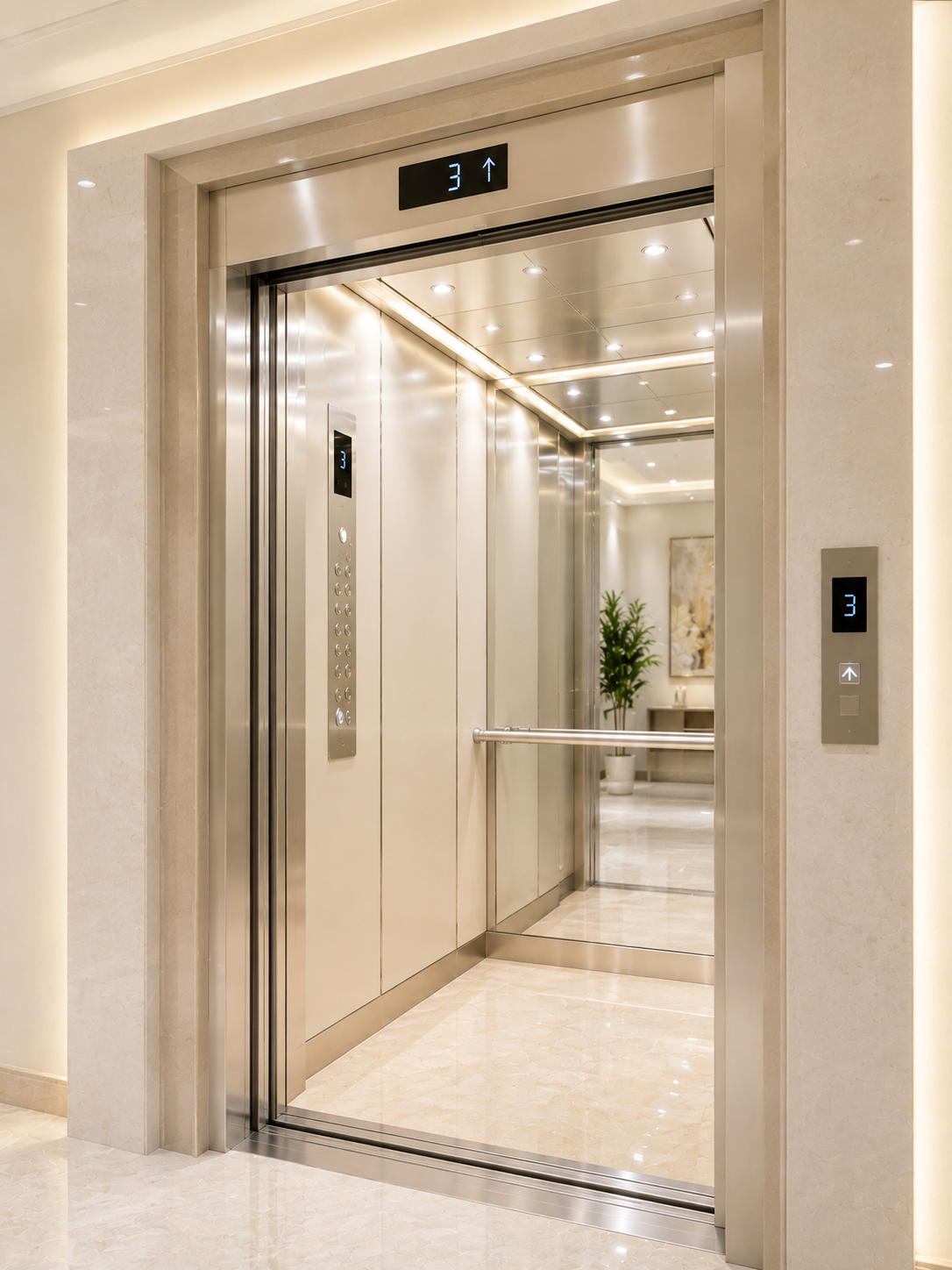

Geared Passenger Lift

Proven, reliable traction technology for medium-rise commercial and residential buildings.

Get Free Quote
RELIABLE TRACTION SYSTEM

Geared Passenger Lifts

Proven geared traction technology engineered for commercial complexes, office buildings, hotels and residential towers. Time-tested reliability with smooth passenger transport.

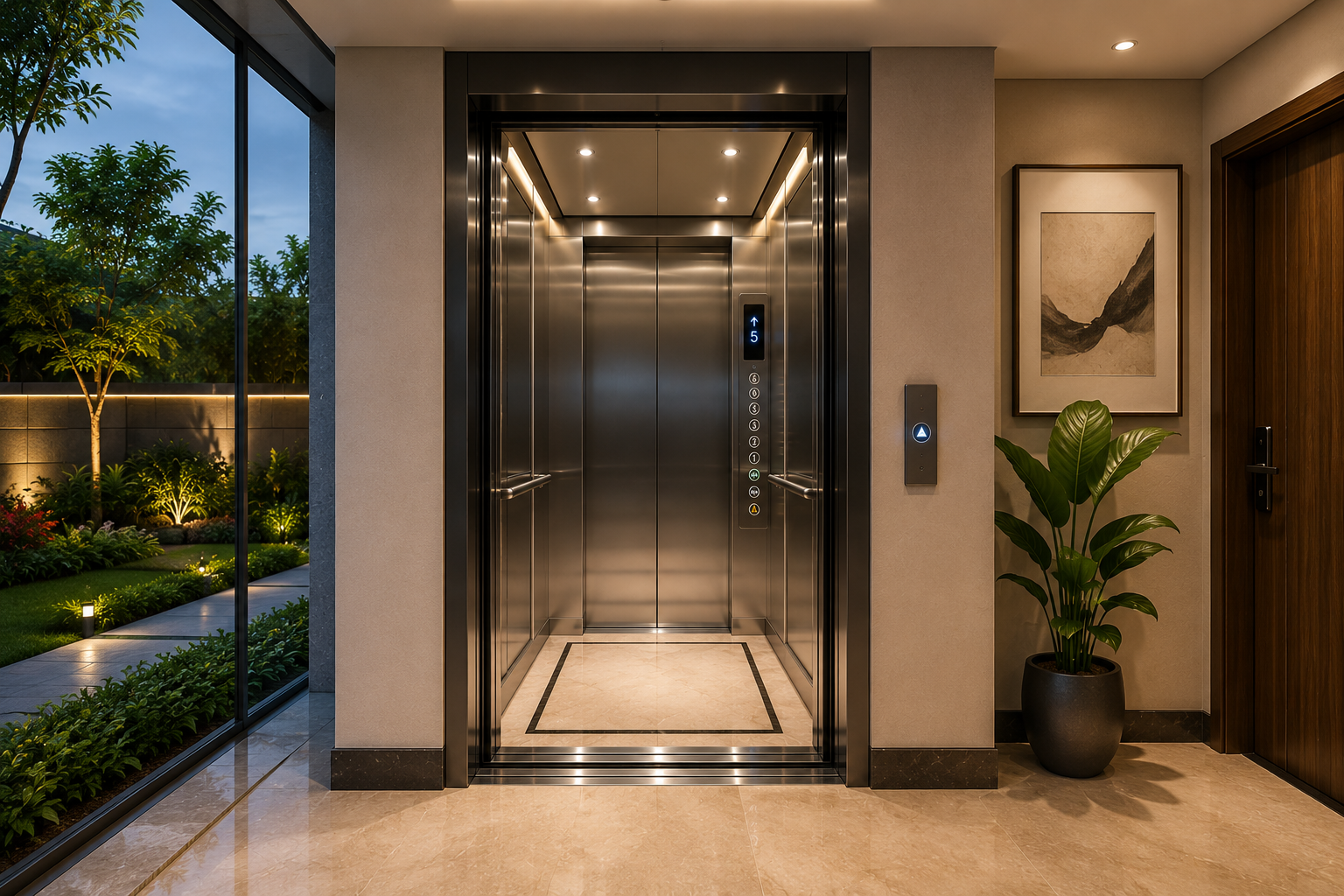

Geared Passenger Lift

Geared Traction System

Robust geared traction drive with proven reliability for medium-rise commercial buildings and residential towers.

KEY SPECIFICATIONS

Geared Passenger Lift

Robust geared traction drive with proven reliability. Ideal for medium-rise buildings with consistent passenger traffic and budget-conscious projects.

Lift TypeGeared Traction
Motor TypeWorm Gear Induction Motor
Capacity1000 – 1600 KG
Speed1.0 – 1.6 m/s
FloorsUp to 8 Stops
Cabin Size1400 × 1100 mm
Machine RoomRequired (Overhead)
Door TypeAuto Sliding (2 Panel)
Installation15 – 20 Days
Starting Price₹11 Lakhs+
Get Full Brochure
WHY CHOOSE GEARED TRACTION

Proven Performance

Core Components

  • Worm Gear Traction Machine
  • VVVF Drive Controller
  • Stainless Steel Cabin
  • Digital Floor Indicator
  • Automatic Sliding Doors

Reliability & Performance

  • Proven geared technology
  • High starting torque
  • Robust motor & gearbox
  • Time-tested performance
  • Low initial investment

Commercial Suitability

  • Ideal for medium-rise buildings
  • High passenger throughput
  • Budget-friendly solution
  • Easy local maintenance
  • Widely available spare parts

Cabin Finishes

  • Mirror / Hairline SS Walls
  • Granite / Marble Flooring
  • False Ceiling with LED
  • Handrail (SS / Wood)
  • Custom Panel Options
BEFORE INSTALLATION

Site Requirements

SHAFT SIZE

Shaft Dimensions

Minimum shaft size of 1500×1600 mm for standard 8-person cabin. Standard dimensions for a geared system require slightly more overhead space for the machine room above the shaft.

MACHINE ROOM

Overhead Room Required

A machine room of approx. 8–12 sq m is required above the top floor. This houses the drive motor and control panel. Our team provides detailed machine room layout plans.

POWER

Three-Phase Supply

Three-phase 415V, 50Hz supply required in the machine room. VVVF drive controller reduces peak current and ensures smooth, energy-efficient motor operation.

CIVIL

Pit & Overhead

Pit depth of 1000–1200 mm and overhead clearance of 3800–4200 mm required. RCC shaft construction recommended for all commercial installations.

CAPACITY

Persons per Trip

Standard models carry 10 to 16 persons per trip (1000 KG to 1600 KG). Ideal for office buildings, apartments, hotels and commercial complexes up to 8 floors.

COMPLIANCE

Standards Met

Fully compliant with IS 14665, NBC 2016 and BIS standards. We handle all statutory approvals, chief inspector certifications and operational permits.

HAVE QUESTIONS?

Frequently Asked Questions

A geared traction lift uses a worm gear reduction box connected to an AC induction motor to drive the traction sheave. It's a time-tested, cost-effective technology ideal for low to medium-rise buildings up to 8 floors with speeds up to 1.6 m/s.

Yes. Geared traction lifts are widely used in office complexes, hotels, residential apartments and commercial buildings up to 8 floors. They provide high reliability, smooth operation and cost-effective maintenance — perfect for moderate traffic buildings.

Geared lifts have a lower initial cost and use proven worm gear technology but require a machine room and consume more energy. Gearless lifts are faster, more efficient and MRL, but at a higher initial investment. We help you choose the right option based on building height and budget.

Our lifts are equipped with ARD (Automatic Rescue Device) which automatically moves the cabin to the nearest floor and opens the doors during a power cut — ensuring passengers are never trapped inside the elevator cabin.

Geared traction lifts require quarterly preventive maintenance — gearbox oil check, brake adjustment, wire rope inspection and safety device testing. Our AMC covers all scheduled visits by factory-trained technicians with genuine spare parts.
